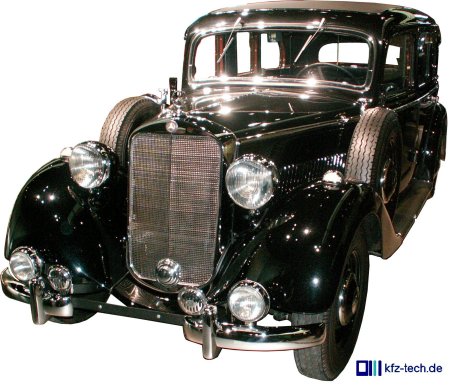

Mercedes 260 D Mercedes 260 D
| Mercedes 260 D (OM 138) | |
| Motor | in-line-four cylinder engine |
| displacement | 2545 cm³ |
| bore * stroke | 90 * 100 mm |
| crankshaft | five bearing |
| compression | 20,5 : 1 |
| Engine Control | OHV |
| Injection | antechamber system |
| mixture formation | in-line injection pump (Bosch) |
| max. power | 33 kW (45 HP) |
| rated speed | 3000 rpm |
| powertrain | Front Engine with Rear Drive |
| clutch | single disc, dry |
| transmission | Four Speed, partly synchronised connection between Gear 3 and 4 |
| wheelbase | 3050 mm |
| Front Suspension | Double-transverse-leaf spring, friction demper |
| Rear Suspension | Two-joint-swing axle, hydraulical demper |
| Steering | finger steering |
| Brakes | Drums, hydraulical |
| Length | 4769 mm |
| Width | 1720 mm |
| Height | 1680 mm |
| Tank Capacity | 50 Litres |
| fuel consumption | approx. 11 Litres/100 km |
| Basic Weight | approx. 1600 kg + driver |
| Top Speed | approx. 95 km/h |
| Manufactured | 1936 - 1940 |
| Versions | Long version, Saloon/Sedan, Landaulet, Convertible |
