USA 1

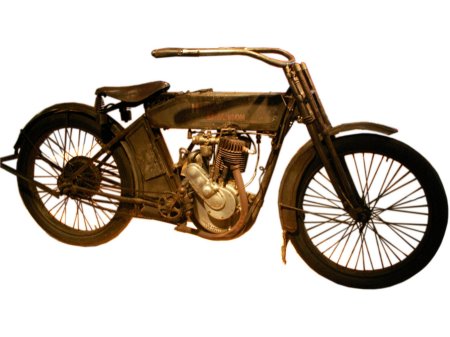

Harley Davidson 9-B "One of the first models - click to enlarge!")
| Harley Davidson 9-B | |
| Made in | USA |
| Engine | One-cylinder engine |
| Displacement | 560 cm³ |
| Bore * stroke | 84 * 101 mm |
| Engine control | Outlet (ohv), inlet (sv) |
| Mixture preparation | Single venturi carburetor |
| Cooling | Air-stream |
| Performance | 4 kW (5 HP) |
| Drivetrain | Transversal engine, chain drive |
| Clutch | Rear wheel hub |
| Transmission | None |
| Spring system | Front only |
| Brake | Rear only |
| Kerb weight | 125 kg |
| Top speed | Approx. 90 km/h |
| Year of manufacture | 1913 |
