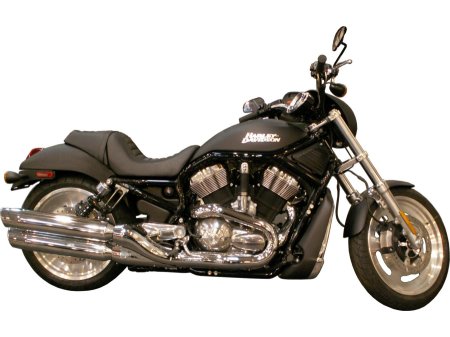

Harley Davidson Night Rod







Harley Davidson Night Rod
Product ofUSA
Engine typeV two-cylinder (60°)
Displacement1131 cm³
Bore * stroke100 * 72 mm
Compression11,3 : 1
Engine controlDOHC
Valves4 per cylinder
Mixture formationPetrol injection
Exhaust controlKat without lambda control
CoolingFluid
Torque108 Nm at 7000 rpm
Performance89 kW (121 HP)
Rated speedApprox. 8.500 rpm
Engine power79 kW/dm³
ClutchNine-disc oil bath
TransmissionFive-speed
Brakes v/h2/1 Four-piston caliper
Wheels f/r120/70 R 19 Z / 180/55 R 18 Z
Tank capacityApprox. 14 liter
Curb weight285 kg
Top speedApprox. 220 km/h
Year of manufacture2005
Purchase pricefrom € 17.000,-
Electric12 V/ 38 A

As a cross between V-Rod and Street Rod is called this design machine. Equipped with the new, absolutely powerful V-Twin and a low seating position, which forces a more flexed position. Absolutely sporty to the lack of ground clearance in driven sharply curves.

In the engine is still potential for development at the time of appearance. Indeed not in the already relatively high speed, but in the bore and thus in displacement. Nevertheless, the performance is growing even more significantly than the torque at even slightly increased compression ratio. What are still growing, are the rear tyre width and - probably even necessary - the tank capacity, to say nothing of the purchase price. 05/09
