| Jaguar Mark X Automatic |
| Engine | In-line six-cylinder |
| Displacement (bore*stroke) | 4.235 cm³ (92,1 mm * 106 mm) |
| Compression ratio | 9 : 1 (petrol) |
| Engine control | dohc |
| Valves | 2 per cylinder |
| Cooling | Liqiud, pump circulation |
| Maximum torque | 385 Nm at 4.000 rpm |
| Maximum power | 198 kW (269 HP) at 5.400 rpm |
| Transmission | Manual three-speed |
| Drive train | Front engine, longitudinal,
Rear drive |
| Wheelbase | 3.048 mm |
| Turning circle | 12.500 mm |
| Front suspension | Independent suspension, coil springs |
| Rear suspension | Independent suspension, coil springs |
| Brakes front | Discs |
| Brakes rear | Discs |
| Brake | Servo |
| Wheels front | Dunlop SP41 205-14 |
| Wheels rear | Dunlop SP41 205-14 |
| Length | 5.131 mm |
| Width | 1.930 mm |
| Height | 1.391 mm |
| Kerb weight | 1.883 kg |
| Tank capacity | 90 liter |
| Maximum speed | 196 km/h |
| Year of manufacture | From 1964 |

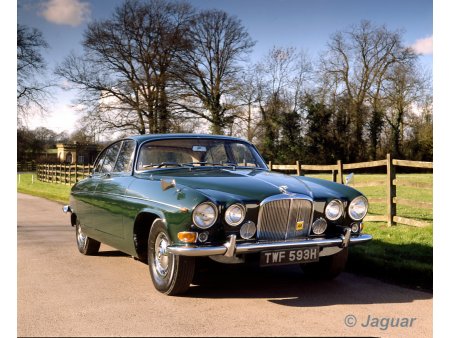

Jaguar Mark X 1964
