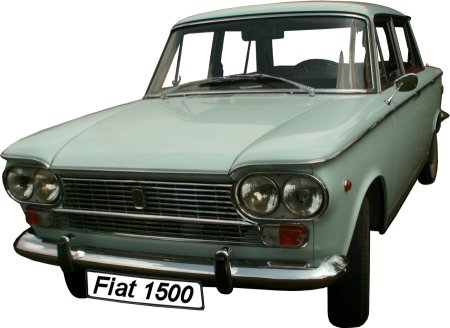

Fiat 1500









Fiat 1500
EngineIn-line four-cylinder
Displacement1481 cm³
Bore * stroke77 * 79,5 mm
CrankshaftThree times bearing
Cylinder headAluminum
Compression8,8 : 1
Mixture preparationDouble carburetor
Torque111 Nm at 3200 rpm
Max. power49 kW (67 HP)
Rated speed5200 rpm
PowerdriveFront engine with rear drive
TransmissionFour speed, steering column-mounted gear
SteeringWorm, roller
Suspension frontDouble wishbone
Suspension rearRigid axle, leaf spring
Brakes f/rDiscs
Wheelbase2650 mm
Length4485 mm
Width1620 mm
Height1470 mm
Tyres5.90 - 14 (4,5")
Tank capacity60 liters
Basic weight1200 kg incl. driver
Max. speedApprox. 140 km/h
Manufactured1962 - 1968
VersionConvertible

Fiat advertises the all-day use of this middle-class car with up-to-date technology. Lots of space at a reasonable price. Just the engine should be more powerful. On the other hand, Fiat stresses its reliability and its efficiency.
Oh yes, the disc brakes should be mentioned, a sensation at that time. Additionally, there is a small electromagnetic fan, also unique in this segment. The service interval of 10.000 km is positive, too.
1964 the body is granted the engine of the 1500 C with 55 kW (75 HP), improving the power. A year later, an alternating current generator, a closed cooling system, and the omission of lubricating nipples at the joints, are added.
