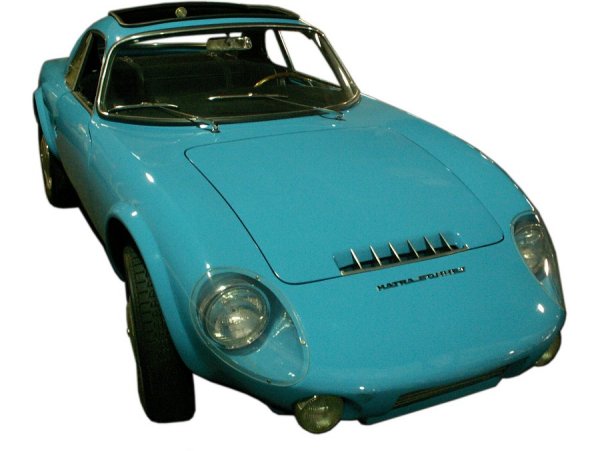

Matra Bonnet






Matra Djet (Chrysler France)
EngineIn-line four-cylinder
Displacement1698 cm³
Bore * stroke90 * 66,8 mm
CrankshaftThree bearing
Compression9,0 : 1
Engine controlOHV (spur gears)
Valve driveRocking levers, push rod
Mixture preparationSimple-/dual carburetors
CoolingFluid
Torque125/134 Nm at 2400/3000 rpm
Max. power51/54 kW (70/73 HP)
Rated speed000 rpm
PowertrainCenter engine, longitudinal, with rear drive
TransmissionFour speed
Wheelbase2560 mm
Front suspensionDouble wishbone
Rear suspensionTrailing links
SpringsCoils
SteeringRack and pinion
Brakes f/rDiscs
Tyres f/r145 R 13 / 155 R 13 (165 R 13)
Length4160 mm
Width1560 mm
Height1200 mm
Tank capacity45 liter
Basic weight840 kg + driver
Top speedApprox. 170 km/h
Manufactured1962 - 1967
IntroductionGeneve
