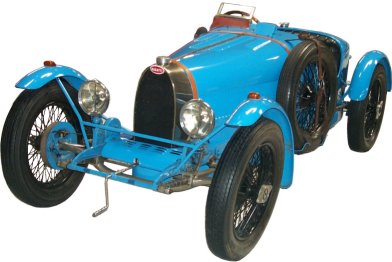

Bugatti 51





Bugatti 51
EngineIn-line eight-cylinder
Displacement2261 cm³
A: 1492 cm³
C: 1990 cm³
Connecting rodMounted in anti-friction bearing
Engine controlDOHC (spur gears)
Valve angle90°
SuperchargingCompressor
Charge pressureAbout 1,5 bar
Max. power140 kW (190 HP)
A: 103 kW (140 HP)
C: 118 kW (160 HP)
Rated speed5500 rpm
PowerdriveFront engine with rear drive
Top speedApprox. 230 km/h
BrakesDrums, mechanically operated
Years of manufacture1931 - 1934



The Bugatti 51 descends from the 35 B. Common with it, it has a very successful racing career, including a first place at the Grand Prix in Monaco 1931. But also circuit racings over longer distances it could win. Thus it became one of the most successful racing cars of his company.
Even the engine start is not without problems, must yet after opening of the the fuel tap, the activation of pressure by hand, the early adjustment of the ignition and the increased idling in a professional manner rotate the crank. This is not done by uniform rotation but rather jerky. Then comes the difficulty, thread themselves behind the wheel and maintain this position in curves. After all, one have at this racing car a passenger, where oneself can be indeed supported, but who possibly does this in the same way.
