History BMW 3xx (1. Generation)

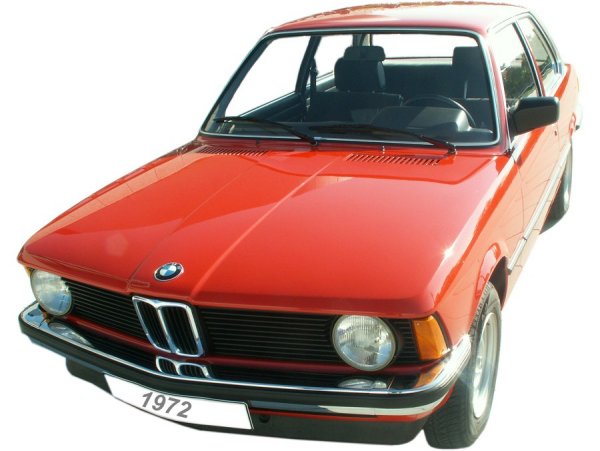

3xx as successor of the 2xx - click to enlarge!
Magnification








German version

BMW 316/318/320/320i (E 21)
EngineIn-line four-cylinder
Displacement1573/1766/1991 cm³
Bore * stroke84*71/89*71/89*80 mm
Compression8,3/8,3/8,0/9,3 : 1
Engine controlSOHC (chain)
Mixture preparationSingle/twin barrel carburetor, K-jetronic
IgnitionTransistor, breakerless
Torque125/145/160/175 Nm at 4000/4000/3700/4350 rpm
Power66/72/80/92 kW (90/98/109/125 HP)
Nominal rotation speed6000/5800/5800/5700 rpm
Drive trainFront engine with rear-wheel drive
Transmission USFour-speed, automatic
Brakes f/rDiscs/drums, dual-circuit, brake servo
Wheelbase2.563 mm
Tyres185/70 R 13
Length4.355 mm
Width1.610 mm
Height1.380 mm
Tank capacity58 liter
Boot capacity460 liter
Weight1010 - 1090 kg + driver
Max. speedApprox. 160 - 180 km/h
Drag coefficient0,46
Introduction1975
PriceApprox. 13.600 DM (316)
Approx. 14.400 DM (318)
Approx. 15.300 DM (320)
Approx. 17.400 DM (320 i)
Battery/generator12 V/44 Ah/52,5 A

This car ought to combine the dimensions of the compact class with the comfort of a fully-grown sedan and a suitable cubic capacity. BMW holds on to the principle of a front engine with rear-wheel drive, but has to position the car favorably enough so that it lures starters. A vehicle with front-wheel drive would imply significantly higher investment costs, but the production costs would not sink substantially. Additionally, it would no longer be possible to use the whole engine range up to the six-cylinder in-line engine. And teething troubles would be more substantial. Only much later BMW managed to conquer Rover's Mini, and thereby establish its Compact-mobile for the company.

These vehicles of the 3 - series are the legitimate successors to the 1502 - 2002. For the time being, the model remains with two doors, anew is the six-cylinder engine in the 320 and 323 from 1977/1978 (picture 1 and 2). The car body is increased, mainly providing more wheelbases. In front it is the spitting image of its predecessor, even if the stronger versions feature four smaller headlights instead of two bigger ones. The boot is taller, which makes it difficult to provide for an elegant shape. It does not carry on the elegance of the 02. On the contrary, it must be covered with a black visor (see picture 2) after customer's protests.

BMW 315 (E 21)
EngineIn-line four-cylinder
Displacement1573 cm³
Bore * stroke84 * 71 mm
Compression9,5 : 1
Engine controlSOHC (chain)
Mixture preparationDowndraft carburetor
IgnitionTransistor, breakerless
Torque110 Nm at 3200 rpm
Power55 kW (75 HP)
Nominal rotation speed5800 rpm
Power drive designFront engine with rear-wheel drive
Transmission USFour-/five-speed, automatic
Brakes f/rDiscs/drums, dual-circuit, brake servo
Tyres165 SR 13 (5") / 185/70 HR 13
WeightApprox. 1010 kg + driver
Max. speedApprox. 155 km/h
Construction period1981 - 1984
